Features

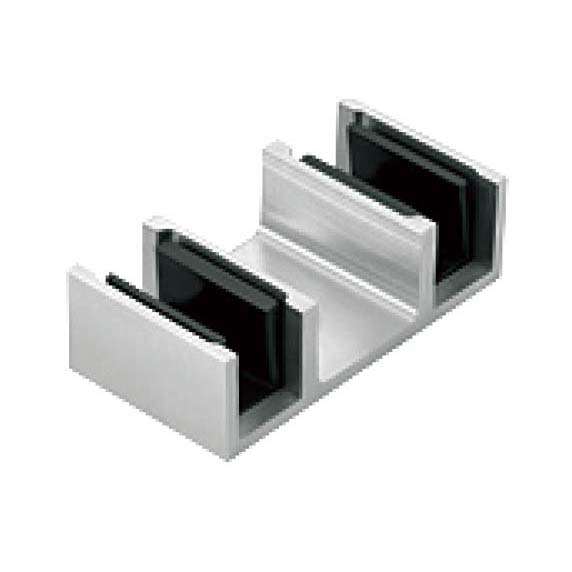

The Jit Homes dual-channel floor guide (DJSD-7040A) is designed for frameless double sliding glass door applications within the D7000A Series.
The dual-channel body keeps each door panel aligned along its guide path at floor level throughout the full range of operation.
Rubber buffer pads lining the inner walls of each channel prevent direct metal-to-glass contact and reduce noise when the door panels reach the end position.
Manufactured from stainless steel with a polished finish, it is built to perform reliably in the high-humidity conditions of wet-area shower environments.
The D7000A Series accommodates glass thicknesses from 5/16″ to 3/8″ (8–10 mm) and can also be custom-made to support 1/4″ (6 mm) and 1/2″ (12 mm) glass thicknesses.
The series supports a maximum door weight of 176.4 lb (80 kg), with a maximum door width of 73″ (1854 mm) and a maximum door height of 79″ (2000 mm).
Designed to work in conjunction with the other D7000A Series hardware components, the series supports installation lengths of 60″ (1524 mm) and 73″ (1854 mm) to suit a range of standard shower enclosure configurations.
Finishes Available
Choose from a range of classic and contemporary finishes to match your space:
- Polished Stainless Steel
- Satin stainless steel
- Brushed Gold Stainless Steel
Looking for something different? Other finishes available on request.
