Features
The Jit Homes 90-degree glass-to-wall shower hinge is developed for frameless glass shower door systems.
The hinge is suitable for 5/16″–3/8″ (8-10mm) glass and can also be custom-made to accommodate 1/4″ (6mm) and 1/2″ (12mm) glass thicknesses.
It is manufactured from stainless steel and processed with a polished surface finish suitable for wet-area use.
The hinge structure is rated for glass doors with controlled movement under regular operating conditions.
Door motion remains stable during opening and closing.
The design supports consistent alignment throughout the service life of the hinge.
This model is a standard shower hinge.
The hinge does not provide angle locking.

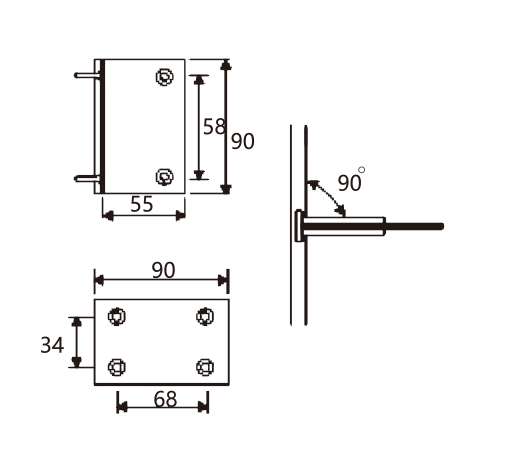

The maximum hinge opening angle is ±90 degrees.
The 90-degree glass-to-wall hinge from Jit Homes is intended for residential shower rooms and commercial shower enclosures where frameless glass doors are specified.
Finishes Available
Choose from a range of classic and contemporary finishes to match your space:
- Polished Stainless Steel
- Satin stainless steel
- Brushed Gold Stainless Steel
Looking for something different? Other finishes available on request.
